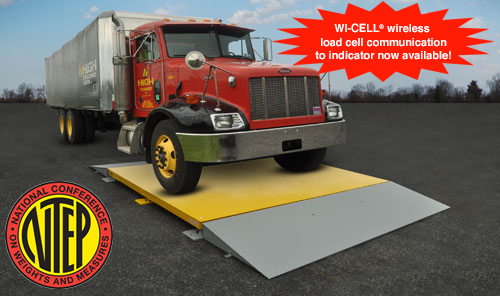

MODEL 770-AW AXLE WEIGHER AND LANDING GEAR SCALE
Model 770-AW Standard Features:
- “Heavy Duty” Concentrated Loading
- 60K Total Capacity
- 4′, 5′ & 6′ Drop-in-Place Modules
- 20K “Heavy Duty” Environmentally Sealed Load Cells
- Polycarbonate NEMA 4X Junction Box
- 4″ Structural Tubular Steel Construction
- Diamond Tread Deck Plate
- 200% Overload Protection
- Scale Assembles in Sections on Site (No Welding)
- Standard Shipping Mode is by LTL Carrier
- Optional ramps are constructed with standard asphalt package so scales can be used on asphalt or concrete.
- Note: 770-AW Axle Weighers, 770-AW-LG Landing Gear Scale and 770-AW ramps sold seperately.
- Note: Cambridge offers a full line of indicators for your weighing needs.
-
Free worldwide shipping on all orders over $100
-
Delivers in: 3-7 Working Days Shipping & Return
Features:
4″ structural tubular steel cross-strut design equally distributes weight over entire scale surface for superior strength and durability. 20K “Heavy Duty” environmentally sealed load cells with captive ball leveling feet to guarantee stability and repeatability.
Easy top access to the polycarbonate NEMA 4X junction box mounted inside the tubular steel frame.
Watertight junction box connections make set-up quick and easy and allows multiple scales to be linked together.
Unique pin and rail design allows for fast and secure locking of scales together in multiple configurations.
This permits a totally customizable set up based on your individual needs.
Options:
- Stainless steel load cells
- “FM” load cells
- Side Rails
- Bump Rails
- WI-CELL Wireless load cell communication
Accessories:
- Pit Forms
- Ramps
- Spacer Modules
Consult Factory for Lead Time or Change to 6-10 Weeks Typical.
