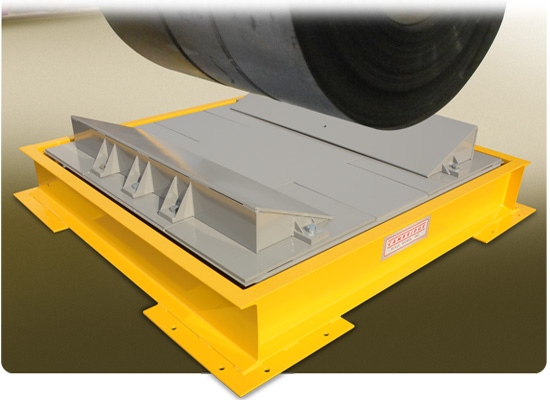

MODEL LL-FT COIL SERIES
CONCENTRATED LOAD SCALES
APPLICATIONS
• Steel Coils • Aluminum Coils • Copper Coils • Cable Spools • Billets • Charge Weighing
• Castings • Steel Scrap
STANDARD FEATURES
• 100,000 Lb capacities
• Cross strutted structural tubular steel construction.
• 1/2 inch thick smooth carbon steel deck plate.
• Four internally mounted, IP 67 rated water resistant load cells.
• Self checking protective safety yellow framework.
• Polycarbonate NEMA 4x junction box.
• High strength grade 5 hardware.
• Top access to load cells and junction box.
• Durable urethane enamel paint.
• 25 foot heavy duty, high visibility, shielded indicator cable.
• Lag down plates.
• Double link suspension system.
• "Nylatron"® Non conductive load cell mounting blocks.
OPTIONS
• 3/8" Diamond deck plate
• Staniless steel and/or "FM" approved load cells
• Staniless steel on-board NEMA 4X junction box
ACCESSORIES
• Coil cradle
• 48" indicator column (Freestanding)
MODEL LL-FT COIL SERIES CONCENTRATED LOAD SCALE SIZES AND CAPACITIES
SIZE
CAPACITY
LOAD CELL
QUANTITY AND CAPACITY
SHIP WEIGHT
72” X 72” X 12”
100,000 Lb.
4 X 60,000 Lb. Each
3,895 Lb.
72” X 96” X 12”
100,000 Lb.
4 X 60,000 Lb. Each
5,190 Lb.
84” X 96” X 12”
100,000 Lb.
4 X 60,000 Lb. Each
6,060 Lb.
96” X 96” X 12”
100,000 Lb.
4 X 60,000 Lb. Each
6,925 Lb.
120” X 120” X 12”
100,000 Lb.
4 X 60,000 Lb. Each
10,820 Lb.
NOTE: Maximum Crane Speed; 12 foot per minute.
Specifications subject to change.
Custom sizes and capacities are available. Please consult the factory for details.
Click on the image above to download an Adobe® PDF document with detailed information on the Cambridge Scale Works Model LL-FT COIL.
