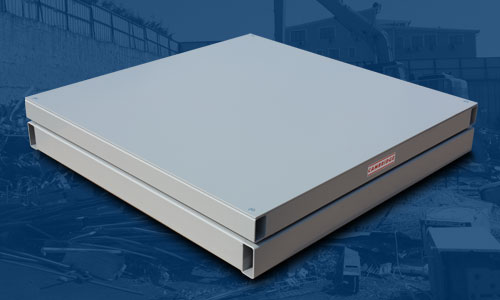

Model CSFB Series
Flexure Scale

Applications:
General Purpose Weighing
Shock Loading
Junk Yards
Recycling Centers
Landscape Yard

Standard Features:
Ratio Lever System Design
Structural Tubular Steel Construction
Grade 5 Hardware
High Strength Self-Aligning Wire Rope Cable
One Internal Load Cell
“Live Mounted” Load Cell
20’ Shielded Indicator Cable
Smooth Deck Plate - Removable for easy access to live section
Hardened Stainless Steel Flexures
Shear Beam Load Cell– NTEP Certified–5000 Divisions–Class III/IIIL Environmentally Protected
150% Overload Protection
Industrial Grade Rust Prohibitive Paint
One Part in 5000 Accuracy
Shock Load and Side Load Protection
Compatible With Most Digital Indicators With Remote Base Capabilities

Above: Model CSFB shown with optional fork lift skid package and affixed rigid indicator column.

Options:
Four Leveling Feet
Diamond Plate Deck
Stainless Steel Construction
Lag Down Brackets
Rigid Indicator Column

Harsh Environment Package Includes:
Sandblasting
Capped and Sealed tubes
Cold Zinc Epoxy Coating
Polyurethane Enamel Top Coat
Stainless Steel Hardware
Stainless Steel Flexures
Stainless Steel Load Cell

Fork Lift Skid Package Includes:
Fork Lift Channels
Pedestals
Swivel Ball Leveling Feet

MODEL CSFB SERIES FLEXURE SCALE SPECIFICATIONS
PLATFORM SIZE
CAPACITY
SHIPPING WEIGHT
30" X 30" X 8"
1000 LB
250 LB
30" X 30" X 8"
2500 LB
250 LB
36" X 36" X 8"
1000 LB
360 LB
36" X 36" X 8"
2500 LB
360 LB
36" X 36" X 8"
5000 LB
360 LB
48" X 48" X 8"
1000 LB
650 LB
48" X 48" X 8"
2500 LB
650 LB
48" X 48" X 8"
5000 LB
650 LB
48" X 48" X 11.5"
10000 LB
850 LB
48" X 48" X 13.5"
20000 LB
1050 LB
48" X 60" X 8"
2500 LB
750 LB
48" X 60" X 8"
5000 LB
750 LB
48" X 60" X 11.5"
10000 LB
950 LB
48" X 60" X 13.5"
20000 LB
1150 LB
48" X 72" X 8"
2500 LB
850 LB
48" X 72" X 8"
5000 LB
850 LB
48" X 72" X 11.5"
10000 LB
1050 LB
48" X 72" X 13.5"
20000 LB
1250 LB
60" X 60" X 8"
2500 LB
900 LB
60" X 60" X 8"
5000 LB
900 LB
60" X 60" X 11.5"
10000 LB
1100 LB
60" X 60" X 13.5"
20000 LB
1300 LB
60" X 72" X 11.5"
10000 LB
1200 LB
60" X 72" X 13.5"
20000 LB
1400 LB
60" X 84" X 11.5"
10000 LB
1350 LB
60" X 84" X 13.5"
20000 LB
1650 LB
72" X 72" X 11.5"
10000 LB
1450 LB
72" X 72" X 13.5"
20000 LB
1750 LB
Specifications subject to change.
