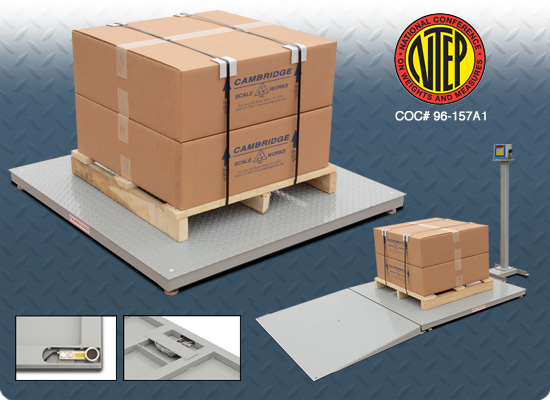

MODEL 660 "PLUS" SERIES
LOW PROFILE SCALES
STANDARD FEATURES
• 1 part in 5,000 accuracy. (NTEP)
• 1 part in 10,000 accuracy. (Non-NTEP)
• Structural tubular steel construction.
• Anti-skid diamond plate deck.
• Top access plastic NEMA 4X junction box.
• Top access leveling.
• Shock load protection.
• 20 foot shielded indicator cable.
• Four internally mounted, NTEP Certified-5000 Division Class III/III L,
IP-67 water resistant rated, environmentally protected, load cells.
• Compatible with digital indicators having remote base capabilities.
• Eye bolt holes for easy setup and moving.
• Low profile design for easy incline ramping.
• 150% overload protection.
• Four way ramp access.
OPTIONS
• Smooth deck plate
• Stainless steel hermetically sealed and/or "FM" approved load cells
• Fork lift skid package
• Attached indicator column
• Stainless steel on-board junction box

See PDF at bottom of page for more information.
ACCESSORIES
• Easy incline ramps
• Pit forms
• Bumper guards
• Bumper guard surround
• 48" indicator column (freestanding)
• Lag down brackets
• Portability cart

See PDF at bottom of page for more information.
MODEL 660 "PLUS" SERIES SIZES AND CAPACITIES
SIZES AND CAPACITIES IN RED DENOTE "NTEP" APPROVED C.O.C. 96-157A1
SIZE
CAPACITY
SHIP WEIGHT
24” X 24” X 3”
1,000 Lb.
90 Lb.
2,500 Lb.
90 Lb.
30” X 30” X 3”
1,000 Lb.
120 Lb.
2,500 Lb.
120 Lb.
36” X 36” X 3”
1,000 Lb.
170 Lb.
2,500 Lb.
170 Lb.
5,000 Lb.
170 Lb.
48” X 48” X 3”
1,000 Lb.
275 Lb.
2,500 Lb.
275 Lb.
5,000 Lb.
275 Lb.
10,000 Lb.
365 Lb.
48” X 48” X 4”
20,000 Lb.
400 Lb.
48” X 60” X 3”
5,000 Lb.
370 Lb.
10,000 Lb.
470 Lb.
48” X 60” X 4”
20,000 Lb.
535 Lb.
48” X 72” X 3”
5,000 Lb.
445 Lb.
10,000 Lb.
565 Lb.
48” X 72” X 4”
20,000 Lb.
670 Lb.
60” X 60” X 3”
5,000 Lb.
448 Lb.
10,000 Lb.
583 Lb.
60” X 60” X 4”
20,000 Lb.
705 Lb.
60” X 84” X 4”
10,000 Lb.
1,150 Lb.
20,000 Lb.
1,300 Lb.
60” X 120” X 5”
10,000 Lb.
1,550 Lb.
20,000 Lb.
1,650 Lb.
72” X 72” X 4”
10,000 Lb.
1,185 Lb.
20,000 Lb.
1,335 Lb.
72” X 96” X 4”
10,000 Lb.
1,575 Lb.
72” X 96” X 5”
20,000 Lb.
1,775 Lb.
72” X 120” X 5”
10,000 Lb.
1,860 Lb.
20,000 Lb.
1,960 Lb.
Custom sizes available, consult factory.
For larger sizes and capacities refer to the
Cambridge Model 770 Series Airport/Light Vehicle scales.
Click on the image at left to download an Adobe® PDF document with detailed information on the Cambridge Scale Works Model 660 "PLUS" Low Profile scale.
