Model 770 Series
Light Vehicle / Airport Scale

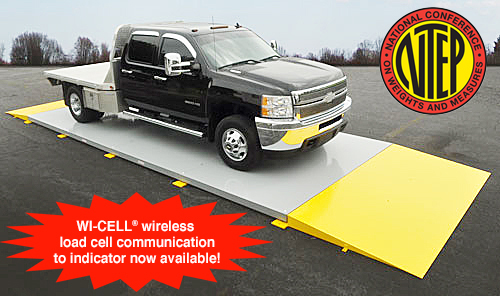

Model 770 Series shown with optional ramps
APPLICATIONS
General Purpose Weighing
Airport Containers
Airport Trams
Pick-Up Trucks
Single Axle / Light Duty Vehicles
Recycling Centers
Landscape Yard
STANDARD FEATURES INCLUDE
Modular Design
30,000 lb & 40,000 lb Capacities
4’, 5’ & 6’ Drop-in-Place Modules
8’ and 10’ Widths Available
Environmentally Sealed Load Cells
Polycarbonate NEMA IV Junction Box
Structural Tubular Steel Construction
Diamond Tread Deck Plates
Scale Assembles in Sections on Site (No Welding)
Standard Shipping Mode is by LTL Carrier
OPTIONS
Stainless Steel Load Cells / "FM"
Approved Load Cells

Guard Rails
Wi-Cell wireless load cell communication

ACCESSORIES
Ramps
Pit forms

Cambridge Scale Works, Inc. has designed our Model 770 Series with unique “drop-in-place” modules and convenient alignment mounting pins for easier installation. 4” structural tubular steel cross-strut design equally distributes weight over entire scale surface for superior strength and durability. 10K “Heavy Duty” environmentally sealed load cells. Each module is independently wired at the factory for quick and easy installation. The polycarbonate NEMA IV junction boxes are prewired and only require a single signal cable from
one of the boxes to the indicator.
Optional ramp has an asphalt package and locator plates.The asphalt package supports the scale on asphalt and protects the scale from settling. The locator plate properly aligns the ramp and scale and supplies proper clearance for operation.
Model 770 Series Sizes and Specifications
Size
Capacity
CLC
# of Modules
# of Sections
# of Load Cells
Load Cell Capacity
Est. Ship Wt.
8' X 8' X 5"
30,000 lbs.
20K
2
3
6
10K
1,850 lbs.
8' X 10' X 5"
30,000 lbs.
20K
2
3
6
10K
2,000 lbs.
8' X 12' X 5"
30,000 lbs.
20K
2
3
6
10K
2,375 lbs.
8' X 18' X 5"
40,000 lbs.
20K
3
4
8
10K
3,650 lbs.
8' X 24' X 5"
40,000 lbs.
20K
4
5
10
10K
4,800 lbs.
10' X 10' X 5"
30,000 lbs.
20K
2
3
6
10K
2,400 lbs.
10' X 12' X 5"
30,000 lbs.
20K
2
3
6
10K
2,850 lbs.
10' X 18' X 5"
40,000 lbs.
20K
3
4
8
10K
4,375 lbs.
10' X 24' X 5"
40,000 lbs.
20K
4
5
10
10K
5,700 lbs.
10' X 30' X 5"
40,000 lbs.
20K
5
6
12
10K
7,025 lbs.
8' X 10' X 5"
60,000 lbs.
30K
2
3
6
15K
2,500 lbs.
8' X 12' X 5"
60,000 lbs.
30K
2
3
6
15K
2,750 lbs.
8' X 18' X 5"
60,000 lbs.
30K
3
4
8
15K
3,650 lbs.
8' X 24' X 5"
60,000 lbs.
30K
4
5
10
15K
5,000 lbs.
10' X 10' X 5"
60,000 lbs.
30K
2
3
6
15K
2,700 lbs.
10' X 12' X 5"
60,000 lbs.
30K
2
3
6
15K
3,000 lbs.
10' X 18' X 5"
60,000 lbs.
30K
3
4
8
15K
4,500 lbs.
10' X 24' X 5"
60,000 lbs.
30K
4
5
10
15K
6,000 lbs.
10' X 30' X 5"
60,000 lbs.
30K
5
6
12
15K
7,400 lbs.
* Note: Longer length scales available - consult factory
Click here to download a .pdf data sheet. (2 pages)
770 Light Vehicle Scale 8X8X5, 8X12X5, 10X8X5, 10X12X5
Click here to download a .pdf set-up and operation manual. (12 pages)
770 Light Vehicle Scale 8X18X5, 10X18X5
Click here to download a .pdf set-up and operation manual. (12 pages)
770 Light Vehicle Scale 8X24X5, 10X24X5
Click here to download a .pdf set-up and operation manual. (13 pages)
770 Light Vehicle Scale 8X30X5, 10X30X5
Click here to download a .pdf set-up and operation manual. (13 pages)
