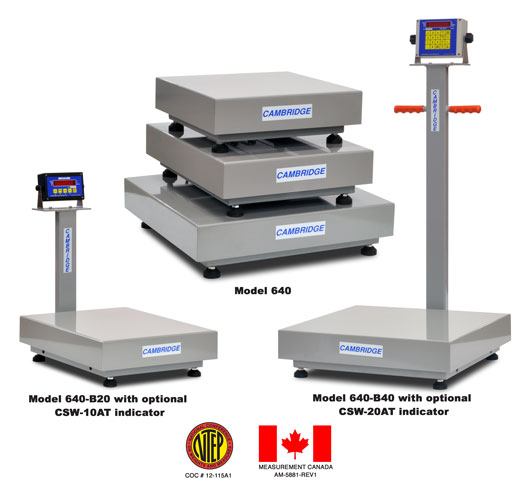

MODEL 640 and 640-B SERIES
PLATFORM SCALES
Model 640 Features:
• 100 lb. to 1,000 lb. capacity.
• Structural tubular carbon steel construction.
• Grade 5 plated steel hardware.
• Heavy gauge carbon steel cover.
• IP 65 water seal rated aluminum load cell.
• 10’ indicator cable.
• Overload and corner protection.
• Four vibration absorbant anti-skid rubber leveling feet.
• Rubber anti-vibration shock mounts.
• Powder coated subsurfaces.
Model 640-B20 Features:
All of the above plus
• 20” painted column with 4” X 8” indicator mounting plate.
Model 640-B40 Features:
All of the above plus
• 40” painted column with 4” X 8” indicator mounting plate.
OPTIONS
• Stainless Steel Cover for harsh environments
• Hermetically Sealed Stainless Steel Load Cell - IP68 Rated
• FM Approved Load Cell
MODEL 640 & 640-B SERIES SPECIFICATIONS
PLATFORM SIZE
CAPACITY
LOAD CELL
640 SHIP WEIGHT
640-B20 SHIP WEIGHT
640-B40 SHIP WEIGHT
18” X 18” X 5.25”
50 Lb.
50 Kg.
65 Lb.
80 Lb.
95 Lb.
100 Lb.
100 Kg.
65 Lb.
80 Lb.
95 Lb.
250 Lb.
250 Kg.
65 Lb.
80 Lb.
95 Lb.
500 Lb.
500 Kg.
65 Lb.
80 Lb.
95 Lb.
1,000 Lb.
635 Kg.
65 Lb.
80 Lb.
95 Lb.
18” X 24” X 5.25”
50 Lb.
50 Kg.
85 Lb.
100 Lb.
115 Lb.
100 Lb.
100 Kg
85 Lb.
100 Lb.
115 Lb.
250 Lb.
250 Kg.
85 Lb.
100 Lb.
115 Lb.
500 Lb.*
500 Kg.
85 Lb.
100 Lb.
115 Lb.
1,000 Lb.*
635 Kg.
85 Lb.
100 Lb.
115 Lb.
24” X 24” X 5.25”
50 Lb.
50 Kg.
100 Lb.
115 Lb.
130 Lb.
100 Lb.
100 Kg
100 Lb.
115 Lb.
130 Lb.
250 Lb.
250 Kg.
100 Lb.
115 Lb.
130 Lb.
500 Lb.*
500 Kg.
100 Lb.
115 Lb.
130 Lb.
1,000 Lb.*
635 Kg.
100 Lb.
115 Lb.
130 Lb.
* NTEP and Measurement Canada Approved
Click here to download a two page data sheet for this product.
Specifications subject to change.
