CAMBRIDGE SCALE WORKS
MODEL: 701-PAW

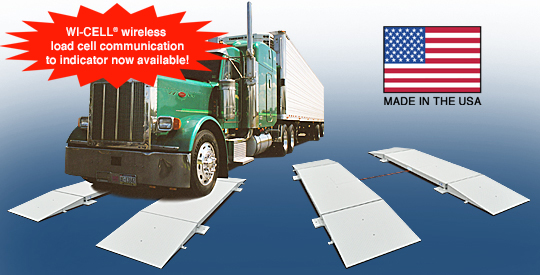

PORTABLE AXLE WEIGHER
MODEL 701-PAW STANDARD FEATURES
• 60K Lb.Total Capacity
• Four 10K Lb. Environmentally Sealed Load Cells (Per Scale)
• Polycarbonate NEMA 4X Junction Box
• 3” Structural Tubular Steel Construction
• Diamond Tread Deck Plate
• 150% Overload Protection

OPTIONS
• Stainless steel load cells
• FM approved load cells
• Wi-Cell wireless load cell communication

ACCESSORIES
• Ramps

Note: Ramps are constructed with
standard asphalt package so scales can be used on asphalt
or concrete surfaces and are sold separately.

 APPLICATIONS
• Single Axle Vehicles
• Tandem Axle Vehicles
• Tractor Trailers
3" Structural tubular
steel construction.

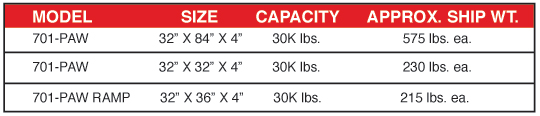

Sizes and Capacities subject to change without notification
Click on the image at left to download a detailed Adobe® PDF document with detailed information on the Cambridge Scale Works 701-PAW Portable Axle Weigher.
