MODEL SS660-PT SERIES STAINLESS STEEL
LOW PROFILE FLOOR SCALES

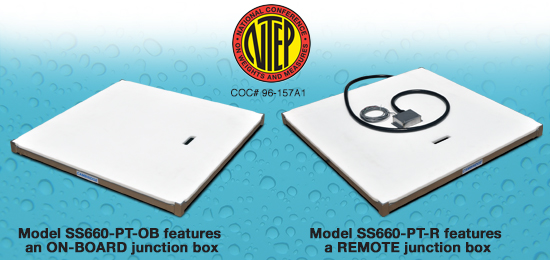

Model SS660-PT-OB Features:
• “ON-BOARD” stainless steel NEMA IV, water seal rated junction box
• Smooth plate stainless steel Type 304
• Stainless steel Type 304 construction
• Capped and sealed stainless steel structural tubing
• Stainless steel IP67 waterseal rated load cells
• 20 ft. shielded signal cable
• 100% end loading protection
• 200% overload & shock load protection
• Easy access leveling

Model SS660-PT-R Features:
All of the above except with-
• “REMOTE” stainless steel NEMA IV, water seal rated
junction box and 10’ Sealite flex conduit
Model SS660-PT Stainless Steel Options:
• Type 316 construction
• Hermetically sealed and/or "FM" approved load cells
• Captive ball leveling feet
Model SS660-PT Stainless Steel Accessories:
• Ramp
• Pit form
• Bumper guard
• Bumper guard surround
• 48" indicator column (free standing)
• Lag down bracket
• Portability cart

MORE INFORMATION
MODEL SS660-PT SERIES SIZES AND CAPACITIES
SIZES AND CAPACITIES IN RED DENOTE "NTEP" APPROVED C.O.C. 96-157A1
SIZE
CAPACITY
SHIP WEIGHT
POLY-TOP WEIGHT
24” X 24” X 3.75”
1,000 Lb.
85 Lb.
20 Lb.
2,500 Lb.
85 Lb.
20 Lb.
30” X 30” X 3.75”
1,000 Lb.
110 Lb.
32 Lb.
2,500 Lb.
110 Lb.
32 Lb.
36” X 36” X 3.75”
1,000 Lb.
160 Lb.
45 Lb.
2,500 Lb.
160 Lb.
45 Lb.
5,000 Lb.
160 Lb.
45 Lb.
48” X 48” X 3.75”
1,000 Lb.
210 Lb.
80 Lb.
2,500 Lb.
210 Lb.
80 Lb.
5,000 Lb.
210 Lb.
80 Lb.
10,000 Lb.
355 Lb.
80 Lb.
48” X 60” X 3.75”
5,000 Lb.
335 Lb.
100 Lb.
10,000 Lb.
430 Lb.
100 Lb.
48” X 72” X 3.75”
5,000 Lb.
405 Lb.
120 Lb.
10,000 Lb.
510 Lb.
120 Lb.
60” X 60” X 3.75”
5,000 Lb.
425 Lb.
125 Lb.
10,000 Lb.
530 Lb.
125 Lb.
60” X 60” X 4.75”
20,000 Lb.
785 Lb.
125 Lb.
60” X 84” X 4.75”
10,000 Lb.
1,050 Lb.
175 Lb.
20,000 Lb.
1,275 Lb.
175 Lb.
Specifications subject to change.
Custom sizes available. Consult factory
