MODEL SA 610 & SA 610-B SERIES
STAINLESS STEEL PLATFORM SCALES
Cambridge Scale Works, Inc. Model SA 610-B Series with 20" stainless steel indicator column.

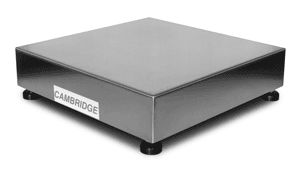

Cambridge Scale Works, Inc. Model SA 610
MODEL SA 610
STANDARD FEATURES
• 5 lb. to 500 lb. capacity.
• High strength cast aluminum subframe.
• Stainless steel hardware.
• Heavy gauge stainless steel cover.
• IP 65 water seal rated aluminum load cell.
• Ten foot indicator cable.
• Overload and corner load protection.
• Four vibration absorbant, anti-skid,
_stainless steel leveling feet.
• Rubber anti-vibration shock mounts.
• Meets NIST HB-44 requirements for class III,
_5000 division.
MODEL SA 610-B
STANDARD FEATURES
• 5 lb. to 500 lb. capacity.
• High strength cast aluminum subframe.
• Stainless steel hardware.
• Heavy gauge stainless steel cover.
• IP 65 water seal rated aluminum load cell.
• 20" stainless steel dual column with 4" X 8"
_indicator mounting plate.
• Overload and corner load protection.
• Five vibration absorbant, anti-skid, stainless steel
_ leveling feet.
• Rubber anti-vibration shock mounts.
• Meets NIST HB-44 requirements for class III,
_5000 division.
OPTIONS
• FM Approved Load Cell
• Stainless Steel Load Cell
MODEL SA 610 & SA 610-B SERIES SPECIFICATIONS
SIZE
CAPACITY
LOAD CELL
610 SHIP WEIGHT
610-B SHIP WEIGHT
12” X 12” X 3.5”
5 Lb.
5 KG.
11 Lb.
20 Lb.
10 Lb.
10 KG.
11 Lb.
20 Lb.
25 Lb.
20 KG.
11 Lb.
20 Lb.
50 Lb.
50 KG.
11 Lb.
20 Lb.
100 Lb.
100 KG.
11 Lb.
20 Lb.
200 Lb.
100 KG.
11 Lb.
20 Lb.
13” X 18” X 3.5”
10 Lb.
10 KG.
21 Lb.
30 Lb.
25 Lb.
20 KG.
21 Lb.
30 Lb.
50 Lb.
50 KG.
21 Lb.
30 Lb.
100 Lb.
100 KG.
21 Lb.
30 Lb.
200 Lb.
100 KG.
21 Lb.
30 Lb.
18” X 18” X 4.5”
50 Lb.
50 KG.
35 Lb.
44 Lb.
100 Lb.
100 KG.
35 Lb.
44 Lb.
200 Lb.
250 KG.
35 Lb.
44 Lb.
500 Lb.
500 KG.
35 Lb.
44 Lb.
Specifications subject to change.
