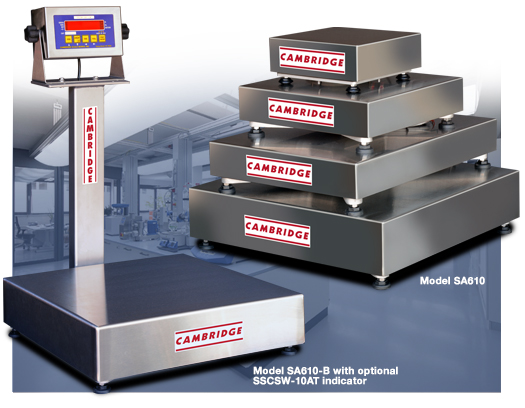

MODEL SA 610 & SA 610-B SERIES
STAINLESS STEEL PLATFORM SCALES
Model SA 610 Features:
• 5 lb. to 500 lb. capacity.
• High strength cast aluminum subframe.
• Stainless steel hardware.
• Heavy gauge stainless steel cover.
• IP 65 water seal rated aluminum load cell.
• Ten foot indicator cable.
• Overload and corner load protection.
• Four vibration absorbant, anti-skid, stainless steel leveling feet.
• Rubber anti-vibration shock mounts.
• Meets NIST HB-44 requirements for class III, 5000 division.

Model SA 610-B Features:
All of the above plus-
• 20" stainless steel column with 4" X 8" indicator mounting plate.
MODEL SA610 & SA610-B SERIES SPECIFICATIONS
SIZE
CAPACITY
LOAD CELL
SA610 SHIP WEIGHT
SA610-B SHIP WEIGHT
6.5” X 6.5” X 3.5”
5 Lb.
5 Kg.
10 Lb.
n/a
10 Lb.
7 Kg.
10 Lb.
n/a
25 Lb.
20 Kg.
10 Lb.
n/a
8” X 8” X 3.5”
5 Lb.
5 Kg.
15 Lb.
n/a
10 Lb.
7 Kg.
15 Lb.
n/a
25 Lb.
20 Kg.
15 Lb.
n/a
12” X 12” X 3.5”
10 Lb.
10 KG.
20 Lb.
29 Lb.
25 Lb.
20 KG.
20 Lb.
29 Lb.
50 Lb.
50 KG.
20 Lb.
29 Lb.
100 Lb.
75 KG.
20 Lb.
29 Lb.
200 Lb.
100 KG.
20 Lb.
29 Lb.
13” X 18” X 3.5”
10 Lb.
10 KG.
23 Lb.
32 Lb.
25 Lb.
20 KG.
23 Lb.
32 Lb.
50 Lb.
50 KG.
23 Lb.
32 Lb.
100 Lb.
75 KG.
23 Lb.
32 Lb.
200 Lb.
100 KG.
23 Lb.
32 Lb.
18” X 18” X 4.5”
50 Lb.
50 KG.
44 Lb.
51 Lb.
100 Lb.
100 KG.
44 Lb.
51 Lb.
200 Lb.
250 KG.
44 Lb.
51 Lb.
500 Lb.
500 KG.
44 Lb.
51 Lb.
Specifications subject to change.
Click here to download a two page data sheet for this product.
