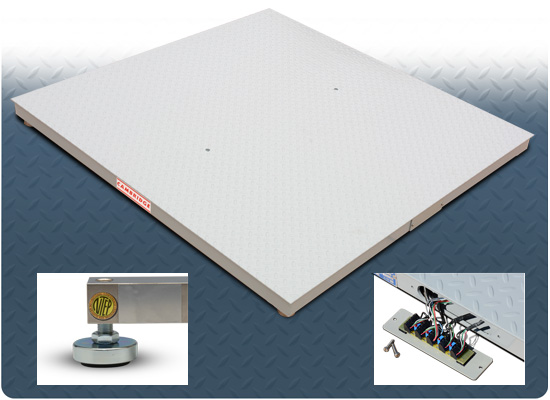

MODEL AL660 SERIES
ALUMINUM LOW PROFILE SCALES
STANDARD FEATURES
• 1 part in 5,000 accuracy.
• Structural tubular aluminum construction.
• Aluminum diamond tread deck plate.
• 150% overload protection.
• 100% end loading protection.
• Low profile design for easy incline ramping.
• Eye bolt holes for easy setup and moving.
• 20 foot shielded indicator cable.
• Shock load protection.
• Four internally mounted, NTEP Certified-5000 Division Class III/III L,
IP-67 water resistant rated, environmentally protected, load cells.
OPTIONS
• Glass bead finish
• Smooth deck plate
• Stainless steel hermetically sealed and/or "FM" approved load cells
• Remote stainless steel NEMA 4X junction box

See PDF at bottom of page for more information.
ACCESSORIES
• Easy incline ramps (carbon steel only)
• Pit forms (carbon steel only)
• 48" indicator column (freestanding) (carbon steel only)
• Lag down brackets (carbon steel only)

See PDF at bottom of page for more information.
MODEL AL660 SERIES SIZES AND CAPACITIES
SIZE
CAPACITY
DECK THICKNESS
SHIP WEIGHT
24” X 24” X 3”
1,000 Lb.
1/4"
55 Lb.
2,500 Lb.
1/4"
55 Lb.
30” X 30” X 3”
1,000 Lb.
1/4"
75 Lb.
2,500 Lb.
1/4"
75 Lb.
36” X 36” X 3”
1,000 Lb.
1/4"
100 Lb.
2,500 Lb.
1/4"
100 Lb.
5,000 Lb.
1/4"
100 Lb.
48” X 48” X 3”
1,000 Lb.
1/4"
155 Lb.
2,500 Lb.
1/4"
155 Lb.
5,000 Lb.
1/4"
155 Lb.
48” X 60” X 3”
5,000 Lb.
1/4"
195 Lb.
48” X 72” X 3”
5,000 Lb.
1/4"
235 Lb.
60” X 60” X 3”
5,000 Lb.
1/4"
265 Lb.
Specifications subject to change. Custom sizes available, consult factory.
Click on the image at left to download an Adobe® PDF document with detailed information on the Cambridge Scale Works Model AL660 Low Profile scale.
