Model 770-AW Axle Weigher and
Model 770-AW-LG Landing Gear Scale

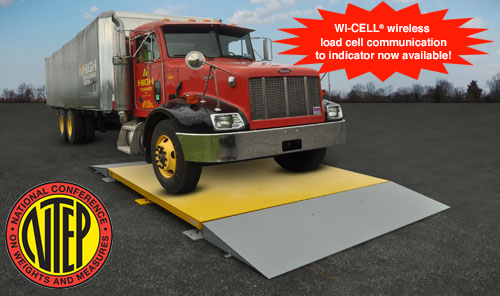

Model 770-AW Series shown with optional ramps
APPLICATIONS:
• Triaxle Weighing
• Concentrated Load Vehicles
• Tractor Trailers
• Tandem Axle Vehicles
• Trailer Weighing
• Multi-Deck Weighing System		 STANDARD FEATURES INCLUDE:
• Modular Design
• “Heavy Duty” Concentrated Loading
• 60K Total Capacity
• 4’, 5’ & 6’ Drop-in-Place Modules
• 20K “Heavy Duty” Environmentally Sealed Load Cells
• Polycarbonate NEMA 4X Junction Box
• 4“ Structural Tubular Steel Construction
• Diamond Tread Deck Plate
• 200% Overload Protection
• Scale Assembles in Sections on Site (No Welding)
• Standard Shipping Mode is by LTL Carrier

• Optional ramps are constructed with standard asphalt package so scales can be used on asphalt or concrete.

• Note: 770-AW Axle Weighers, 770-AW-LG Landing Gear Scale and 770-AW ramps sold seperately.

• Note: Cambridge offers a full line of indicators for your weighing needs.
OPTIONS:
• Stainless Steel Load Cells / "FM"
Approved Load Cells
• Side Rails
• Bump Rails
• Wi-Cell wireless load cell communication
Cambridge Scale Works, Inc. has designed our Model 770-AW Series with unique “drop-in-place” modules and convenient alignment mounting pins for easier installation. 4” structural tubular steel cross-strut design equally distributes weight over entire scale surface for superior strength and durability. 20K “Heavy Duty” environmentally sealed load cells. Each module is independently wired at the factory for quick and easy installation. The polycarbonate NEMA IV junction boxes are prewired and only require a single signal cable from
one of the boxes to the indicator.		 Optional ramp has an asphalt package and locator plates.The asphalt package supports the scale on asphalt and protects the scale from settling. The locator plate properly aligns the ramp and scale and supplies proper clearance for operation.
Axle Weighing
Model
Size
Capacity
CLC
# of Modules
# of Load Cells
Load Cell Capacity
Est. Ship Wt.
770-AW
10' X 8' X 6"
60,000 lbs.
40K
2
6
20K
2,850 lbs.
770-AW
10' X 10' X 6"
60,000 lbs.
40K
2
6
20K
3,550 lbs.
770-AW
10' X 12' X 6"
60,000 lbs.
40K
2
6
20K
4,450 lbs.
Full Truck Weighing
Model
Size
Capacity
CLC
# of Modules
# of Load Cells
Load Cell Capacity
Est. Ship Wt.
770-AW
10' X 15' X 6"
60,000 lbs.
40K
3
8
20K
5,325 lbs.
770-AW
10' X 18' X 6"
60,000 lbs.
40K
3
8
20K
6,675 lbs.
770-AW
10' X 24' X 6"
60,000 lbs.
40K
4
10
20K
8,950 lbs.
770-AW
10' X 30' X 6"
60,000 lbs.
40K
5
12
20K
11,200 lbs.
Landing Gear Weighing
Model
Size
Capacity
CLC
# of Load Cells
Load Cell Capacity
Est. Ship Wt.
770-AW-LG
10' X 3' X 6"
60,000 lbs.
40K
4
20K
1,200 lbs.
Accessories: Ramps and Spacers
Model
Size
Capacity
Est. Ship Wt.
770-AW RAMP
10' X 3' X 6"
60,000 lbs.
895 lbs.
770-AW RAMP
10' X 5' X 6"
60,000 lbs.
1,000 lbs.
770-AW SPACER
10' X 5' X 6"
60,000 lbs.
1,100 lbs.
Click here to download a .pdf data sheet. (2 pages)
770-AW Axle Weigher 10X8X6, 10X10X6, 10X12X6
Click here to download a .pdf set-up and operation manual. (12 pages)
770-AW Axle Weigher 10X15X6, 10X18X6
Click here to download a .pdf set-up and operation manual. (12 pages)
770-AW Axle Weigher 10X24X6
Click here to download a .pdf set-up and operation manual. (13 pages)
770-AW Axle Weigher 10X30X6
Click here to download a .pdf set-up and operation manual. (13 pages)
