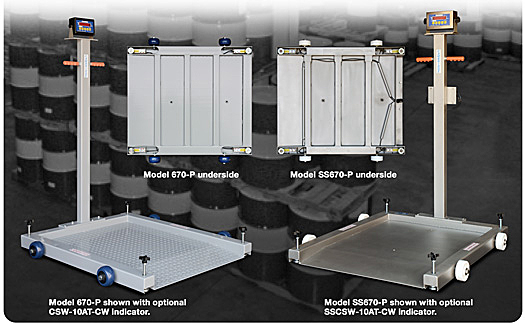

MODEL 670-P and SS670-P
PORTABLE BARREL SCALES
Model 670-P Features
• One built-in front load 9” ramp with rear bumper rail.
• Structural tubular steel construction.
• Anti-skid diamond plate deck with eye bolt holes.
• 40" indicator column with mounting plate.
• 100% End loading capacity.
• 150% Overload Protection.
• (4) Internally mounted, Environmentally protected, NTEP certified-5000 Division,
Class III/IIIL, IP 67 water resistant rated load cells.
• 10 foot indicator cable.
• Compatible with most digital weight indicators.
• Shielded load cell and indicator cables.
• Low profile (1.5” above the floor).
• Live side rails to weigh oversized loads.
• (4) Top access scale adjustment handles.
• (4) Poly bonded 4”wheels, with roller bearings and grease fittings.
Model SS670-P Features
• One built-in front load 9” ramp with rear bumper rail.
• Structural tubular type 304 stainless steel construction.
• Smooth stainless steel plate deck with eye bolt holes.
• 40" stainless steel indicator column with mounting plate.
• 100% End loading capacity.
• 150% Overload Protection.
• (4) Internally mounted, Environmentally protected, NTEP certified-5000 Division,
Class III/IIIL, IP 67 water resistant rated load cells.
• 10 foot indicator cable.
• Compatible with most digital weight indicators.
• Shielded load cell and indicator cables.
• Low profile (1.5” above the floor).
• Live side rails to weigh oversized loads.
• (4) Top access scale adjustment handles.
• (4) Aqualite plastic 4”wheels, with Delrin bearings.
MODEL 670-P SPECIFICATIONS
WEIGHING SURFACE AREA
PLATFORM SIZE
CAPACITY
APPROX. SHIPPING WEIGHT
36" X 42"
30" X 30" X 1.5"
1000 Lb. X .2
250 Lb.
36" X 42"
30" X 30" X 1.5"
2500 Lb. X .5
250 Lb.
42" X 48"
36" X 36" X 1.5"
1000 Lb. X .2
280 Lb.
42" X 48"
36" X 36" X 1.5"
2500 Lb. X .5
280 Lb.
MODEL SS670-P SPECIFICATIONS
WEIGHING SURFACE AREA
PLATFORM SIZE
CAPACITY
APPROX. SHIPPING WEIGHT
36" X 42"
30" X 30" X 1.5"
1000 Lb. X .2
260 Lb.
36" X 42"
30" X 30" X 1.5"
2500 Lb. X .5
260 Lb.
42" X 48"
36" X 36" X 1.5"
1000 Lb. X .2
290 Lb.
42" X 48"
36" X 36" X 1.5"
2500 Lb. X .5
290 Lb.
Specifications subject to change without notice.
Click here to download a two page data sheet for this product.
