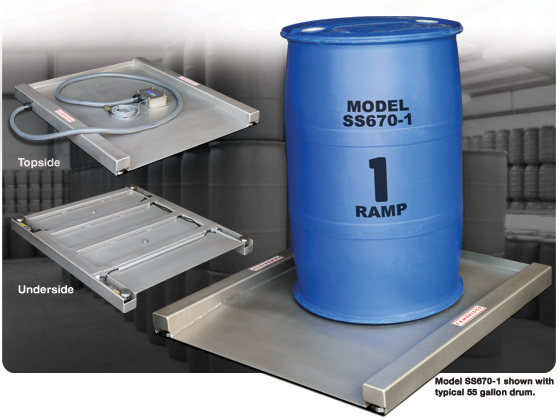

MODEL SS670-1
STAINLESS STEEL BARREL WEIGHER
STANDARD FEATURES
• Structural tubular stainless steel construction.
• Heavy stainless steel plate deck.
• 100% End loading capacity.
• 150% Overload protection.
• 20 Foot indicator cable.
• Eye bolt holes allow easy set-up.
• Shielded load cell and indicator cables.
• Ultra-low profile (1.5” above the floor).
• Live side rails to weigh oversized loads.
• 1 Part in 5000 accuracy.
• Live built-in easy incline ramp.
• Shock load protection.
• (4) Internally mounted, Environmentally protected,
NTEP certified-5000 Division, Class III/IIIL, IP 67 water
resistant rated stainless steel shear beam load cells.
• Easy access leveling.
• Remote stainless steel NEMA 4X junction box
 APPLICATIONS
• Barrels
• Drums
• Totes.
• Super Sacks
• General purpose weighing.
OPTIONS
• Stainless steel diamond deck plate.
• Type 316 stainless steel construction
• “FM” approved junction box

• Load cell options:
Hermetically sealed S.S.,“FM” approved

• Portability Package:
Click here for Model SS670-P1 series page.

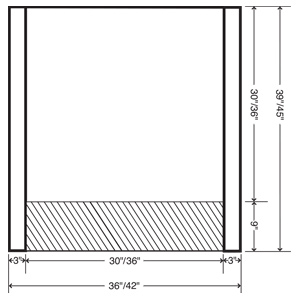

OVERALL DIMENSIONS
MODEL 670-1 SPECIFICATIONS
OVERALL SIZE
PLATFORM SIZE
CAPACITY
APPROX. SHIPPING WEIGHT
36” X 39”
30” x 30” x 1.5”
1,000 Lb. x .2
220 Lb.
36” X 39”
30” x 30” x 1.5”
2,500 Lb. x .5
220 Lb.
36” X 39”
30” x 30” x 1.5”
5,000 Lb. x 1
240 Lb.
42” X 45”
36” x 36” x 1.5”
1,000 Lb. x .2
280 Lb.
42” X 45”
36” x 36” x 1.5”
2,500 Lb. x .5
280 Lb.
42” X 45”
36” x 36” x 1.5”
5,000 Lb. x 1
310 Lb.
Specifications subject to change.
