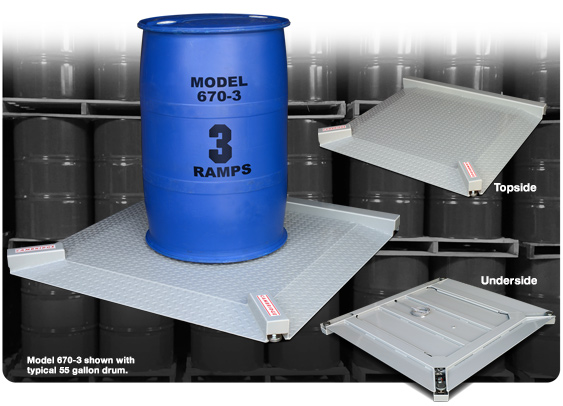

MODEL 670-3
BARREL WEIGHER
STANDARD FEATURES
• Structural tubular steel construction.
• Anti-skid diamond plate deck.
• 100% End loading capacity.
• 150% Overload protection.
• 20 Foot indicator cable.
• Eye bolt holes allow easy set-up.
• Shielded load cell and indicator cables.
• Ultra-low profile (1.5” above the floor).
• Live side rails to weigh oversized loads.
• 1 Part in 5000 accuracy.
• Live built-in easy incline ramps.
• Shock load protection.
• (4) Internally mounted, Environmentally protected,
NTEP certified-5000 Division, Class III/IIIL, IP 67 water
resistant rated shear beam load cells.
• Easy access leveling.
 APPLICATIONS
• Barrels
• Drums
• Totes.
• Super Sacks
• General purpose weighing.

OPTIONS
• Smooth carbon steel deck plate.
• Remote stainless steel NEMA 4x junction box with 10' Sealtite flexible conduit.

• Load cell options:
Stainless steel , Hermetically sealed Stainless Steel,“FM” approved

• H.E.P. Package Includes:
Remote stainless steel NEMA 4x J -box with 10' Sealtite flexible conduit
Capped and sealed tubes
Stainless steel load cells, leveling feet and hardware, Sandblasted surface
Cold zinc epoxy coating with urethane enamel finish coat

• Portability Package:
Click here for Model 670-P1 series page.

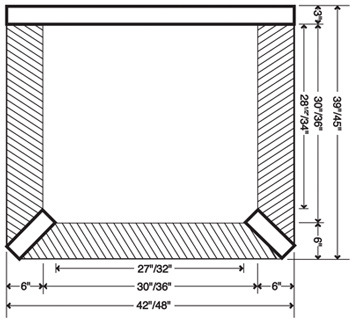

OVERALL DIMENSIONS
MODEL 670-3 SPECIFICATIONS
OVERALL SIZE
PLATFORM SIZE
CAPACITY
APPROX. SHIPPING WEIGHT
39” X 42”
30” x 30” x 1.5”
1,000 Lb. x .2
200 Lb.
39” X 42”
30” x 30” x 1.5”
2,500 Lb. x .5
200 Lb.
39” X 42”
30” x 30” x 1.5”
5,000 Lb. x 1
220 Lb.
45” X 48”
36” x 36” x 1.5”
1,000 Lb. x .2
285 Lb.
45” X 48”
36” x 36” x 1.5”
2,500 Lb. x .5
285 Lb.
45” X 48”
36” x 36” x 1.5”
5,000 Lb. x 1
315 Lb.
Specifications subject to change.
Click here to download a .pdf data sheet. (2 pages)
