MODEL 660-PW SERIES
LOW PROFILE PALLET WEIGHER SCALE
STANDARD FEATURES
• Fits small and large pallets
• Fits all standard “pallet jack trucks” and most “power walkies”
• Structural tubular steel design
• Anti-skid diamond deck plate deck
• Shock load protection
• 20 ft. shielded indicator cable
• Four internally mounted NTEP Certified - 5000 Division,
Class III/III L, IP 67 water resistant rated, environmentally protected,load cells
• Shielded signal and load cell cables protected inside tubular steel frame
• Compatible with digital indicators having remote base capabilities
• Easy access leveling feet and junction board
• Low profile 3” high design
• 150% overload protection
• 1 part in 5,000 accuracy
.
OPTIONS
• Stainless steel or aluminum construction.
• Remote stainless steel NEMA 4X junction box with 10' sealtite conduit.
• Hermetically sealed and/or "FM" approved load cells.

MORE INFORMATION
ACCESSORIES
• Bumper guards
• Indicator/Printer stands
• Locator brackets

MORE INFORMATION
MODEL 660 SERIES SIZES AND CAPACITIES
SIZE
CAPACITY
SHIP WEIGHT
60” X 60” X 3”
5,000 Lb.
335 Lb.
10,000 Lb.
455 Lb.
Specifications subject to change.

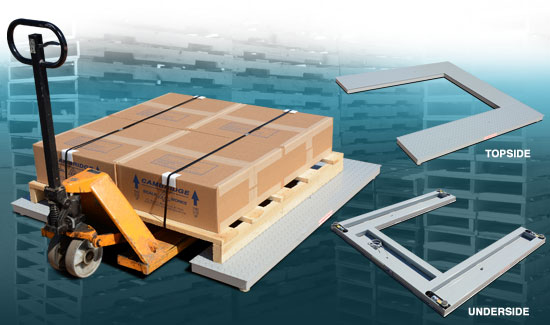

The above graphic illustrates the standard size 660-PW. If custom sizes are required please use the above graphic and replace the standard sizes with the sizes required for your application.
Click on the image at left to download an Adobe® PDF document with detailed information on the Cambridge Scale Works Model 660-PW scale.
