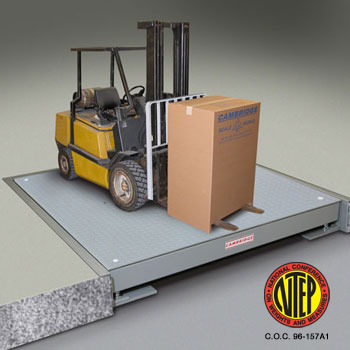

MODEL 660 - CLASSIC - HD SERIES
HEAVY DUTY LOADING & TOWMOTOR SCALES
Underside view of the 660 - Classic - HD showing the cross strutted tubular steel construction. This design, coupled with a 3/8" thick diamond steel deck plate, make this scale a true heavy weight able to handle the unique loading characteristics of towmotor traffic.
STANDARD FEATURES
• 10,000 through 40,000 Lb capacities
• Cross strutted structural tubular steel construction.
• 3/8 inch thick diamond steel deck plate.
• Four internally mounted, IP 67 rated water resistant load cells.
• Polycarbonate NEMA 4x junction trim box.
• Top access junction box and leveling feet.
• Self checking, captive ball leveling feet.
• 20 foot shielded indicator cable.
• Eye bolt holes for easy setup and moving.
ACCESSORIES
• Pit forms
• Bumper guards
• Ramps
• Indicator/Printer stands
• Locator brackets
MORE INFORMATION

OPTIONS
• Stainless steel load cells
• "FM" approved load cells
MODEL 660 - CLASSIC - HD SERIES HEAVY DUTY & TOWMOTOR SCALE
SIZES AND CAPACITIES

SIZES AND CAPACITIES IN RED DENOTE "NTEP" APPROVED C.O.C. 96-157A1
SIZE
CAPACITY
APPROX. SHIP WEIGHT
48” X 48” X 6”
10,000 Lb.
725 Lb.
48” X 48” X 6”
20,000 Lb.
795 Lb.
48” X 48” X 7”
30,000 Lb.
895 Lb.
48” X 48” X 7”
40,000 Lb.
1000 Lb.
48” X 72” X 6”
10,000 Lb.
955 Lb.
48” X 72” X 6”
20,000 Lb.
1,290 Lb.
48” X 72” X 7”
30,000 Lb.
1,390 Lb.
48” X 72” X 7”
40,000 Lb.
1,530 Lb.
60” X 60” X 6”
10,000 Lb.
1,106 Lb.
60” X 60” X 6”
20,000 Lb.
1,254 Lb.
60” X 60” X 7”
30,000 Lb.
1,450 Lb.
60” X 60” X 7”
40,000 Lb.
1,600 Lb.
60” X 84” X 6”
10,000 Lb.
1,450 Lb.
60” X 84” X 6”
20,000 Lb.
1,600 Lb.
60” X 84” X 7”
30,000 Lb.
1,700 Lb.
60” X 84” X 7”
40,000 Lb.
1,800 Lb.
60” X 96” X 6”
10,000 Lb.
1,770 Lb.
60” X 96” X 6”
20,000 Lb.
1,830 Lb.
60” X 96” X 7”
30,000 Lb.
2,186 Lb.
60” X 96” X 7”
40,000 Lb.
2,315 Lb.
60” X 120” X 7”
30,000 Lb.
2,100 Lb.
60” X 120” X 7”
40,000 Lb.
2,200 Lb.
72” X 72” X 6”
10,000 Lb.
1,450 Lb.
72” X 72” X 6”
20,000 Lb.
1,600 Lb.
72” X 72” X 7”
30,000 Lb.
1,700 Lb.
72” X 72” X 7”
40,000 Lb.
1,800 Lb.
72” X 96” X 6”
20,000 Lb.
2,200 Lb.
72” X 96” X 7”
30,000 Lb.
2,600 Lb.
72” X 96” X 7”
40,000 Lb.
2,700 Lb.
72” X 120” X 7”
30,000 Lb.
3,250 Lb.
72” X 120” X 7”
40,000 Lb.
3,375 Lb.
Specifications subject to change.
Custom sizes and capacities are available. Please consult the factory for details.
For larger sizes and capacities visit Model 770-AW in the wheel/axle weigher section.
Click on the image at left to download an Adobe® PDF document with detailed information on the Cambridge Scale Works Model 660 - Classic - HD scale.
