MODEL SS680 SERIES STAINLESS STEEL
ULTRA-LO PROFILE FLOOR SCALE

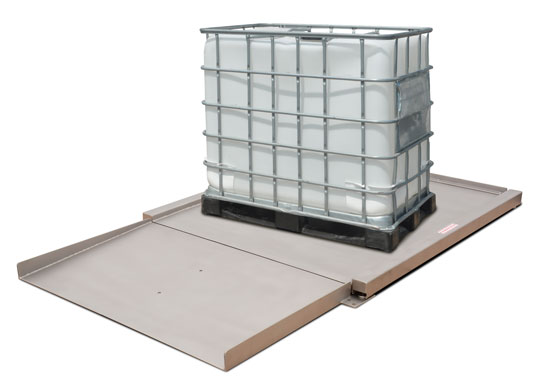

Cambridge Scale Works Model SS680 Series Ultra-Lo Profile Floor Scale shown with optional easy incline ramp and bumper rail.
MODEL SS680 STANDARD FEATURES
• Live safety side rails for oversized loads and roll
  off protection
• Structural tubular stainless steel design
• Capped and sealed tubes throughout
• Smooth stainless steel deck plates
• Stainless steel anti-skid leveling feet
• 100% end loading capacity
• 200% overload protection
• Remote stainless steel NEMA IV junction box with
   ten foot Sealtite® protective conduit.
• Four internally mounted NTEP certified 5000 division
   class III/IIIL water resistant environmentally protected
   IP 67 rated stainless steel load cells
• Easy access stainless steel leveling feet
• Shielded signal and load cell cables
• Ultra-lo profile design for jack truck & cart weighing
• Glass bead stainless steel finish
• One part in 5000 accuracy

OPTIONS
• Stainless steel easy incline ramps
• Stainless steel bumper rail assembly
• Type 316 stainless steel
• Stainless steel diamond tread plate
• Hermetically sealed stainless steel load cells
• "FM" stainless steel load cells
Underside view showing structural tubular steel design. Load cell position allows live side rails.
MODEL SS680 ULTRA-LO PROFILE SCALE SPECIFICATIONS
OVERALL SIZE
PLATFORM SIZE
PLATFORM ELEVATION
CAPACITY
APPROX.SHIPPING WEIGHT
36” X 30”
30” X 30”
1.5”
1,000 Lb.
175 Lb.
36” X 30”
30” X 30”
1.5”
2,500 Lb.
175 Lb.
42” X 36”
36” X 36”
1.5”
1,000 Lb.
230 Lb.
42” X 36”
36” X 36”
1.5”
2,500 Lb.
230 Lb.
42” X 48”
36” X 48”
1.5”
1,000 Lb.
280 Lb.
42” X 48”
36” X 48”
1.5”
2,500 Lb.
280 Lb.
54” X 48”
48” X 48”
2”
5,000 Lb.
315 Lb.
54” X 48”
48” X 48”
2”
10,000 Lb.
365 Lb.
54” X 60”
48” X 60”
2”
5,000 Lb.
400 Lb.
54” X 60”
48” X 60”
2”
10,000 Lb.
460 Lb.
54” X 72”
48” X 72”
2”
5,000 Lb.
485 Lb.
54” X 72”
48” X 72”
2”
10,000 Lb.
560 Lb.
66” X 60”
60” X 60”
2.5”
5,000 Lb.
500 Lb.
66” X 60”
60” X 60”
2.5”
10,000 Lb.
580 Lb.
66” X 72”
60” X 72”
2.5”
5,000 Lb.
605 Lb.
66” X 72”
60” X 72”
2.5”
10,000 Lb.
700 Lb.
66” X 84”
60” X 84”
2.5”
5,000 Lb.
715 Lb.
66” X 84”
60” X 84”
2.5”
10,000 Lb.
850 Lb.
Specifications subject to change. Custom sizes and capacities are available.
Click on the image at left to download an Adobe® PDF document with detailed information on the Cambridge Scale Works Model SS680 ultra-lo profile floor scale.
