MODEL 670-1 and 670-2
BARREL WEIGHER
Model 670-1 Barrel Weigher
One Ramp Model
Model 670-2 Barrel Weigher
Two Ramp Model
STANDARD FEATURES
• Structural tubular steel construction.
• Anti-skid diamond plate deck.
• 100% End loading capacity.
• 150% Overload protection.
• 20 Foot indicator cable.
• Eye bolt holes allow easy set-up.
• Shielded load cell and indicator cables.
• Ultra-low profile (1.5” above the floor).
• Live side rails to weigh oversized loads.
• 1 Part in 5000 accuracy.
• Live built-in easy incline ramps.
• Shock load protection.
• (4) Internally mounted, Environmentally protected, NTEP certified-5000 Division,
Class III/IIIL, IP 67 water resistant rated shear beam load cells.
• Easy access leveling.
OPTIONS
• Smooth carbon steel deck plate.
• Remote NEMA 4x junction box with 10' Sealtite flexible conduit
(available in stainless steel, plastic and “FM” approved).
• Load cell options:
Stainless steel , Hermetically sealed S.S. , Teflon cables,“FM” approved
• High Resolution Package Includes:
Captive ball leveling feet for unmatched stability.
• H.E.P. Package Includes:
Stainless steel NEMA 4x J -box
Capped and sealed tubes
Stainless steel load cells, leveling feet and hardware, Sandblasted surface
Cold zinc epoxy coating with urethane enamel finish coat
• Portability Package:
Click here for Model 670-P1 and 670-P2 series page.

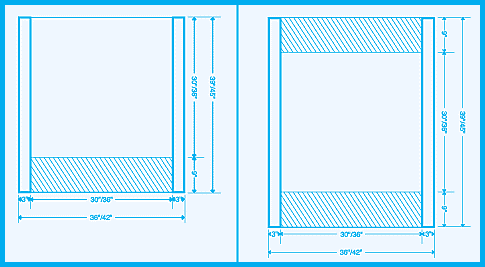

OVERALL DIMENSIONS
MODEL 670-1 SPECIFICATIONS
OVERALL SIZE
PLATFORM SIZE
CAPACITY
APPROX. SHIPPING WEIGHT
36” X 39”
30” x 30” x 1.5”
1,000 Lb. x .2
185 Lb.
36” X 39”
30” x 30” x 1.5”
2,500 Lb. x .5
185 Lb.
36” X 39”
30” x 30” x 1.5”
5,000 Lb. x 1
205 Lb.
42” X 45”
36” x 36” x 1.5”
1,000 Lb. x .2
265 Lb.
42” X 45”
36” x 36” x 1.5”
2,500 Lb. x .5
265 Lb.
42” X 45”
36” x 36” x 1.5”
5,000 Lb. x 1
295 Lb.
MODEL 670-2 SPECIFICATIONS
OVERALL SIZE
PLATFORM SIZE
CAPACITY
APPROX. SHIPPING WEIGHT
36” X 48”
30” x 30” x 1.5”
1,000 Lb. x .2
195 Lb.
36” X 48”
30” x 30” x 1.5”
2,500 Lb. x .5
195 Lb.
36” X 48”
30” x 30” x 1.5”
5,000 Lb. x 1
215 Lb.
42” X 54”
36” x 36” x 1.5”
1,000 Lb. x .2
280 Lb.
42” X 54”
36” x 36” x 1.5”
2,500 Lb. x .5
280 Lb.
42” X 54”
36” x 36” x 1.5”
5,000 Lb. x 1
310 Lb.
Specifications subject to change.
